Narrowband Internet of Things (IoT) Architecture: How It Works and Why It Matters

Introduction

The way we work, live, and engage with our surroundings is changing as a result of the Internet of Things (IoT). IoT applications, ranging from industrial automation to smart homes, depend on effective device-to-device communication. However, not all devices require high-speed broadband connections. Many operate on minimal data, over long periods, and in remote locations. That’s where Narrowband IoT (NB-IoT) comes in – a low-power, wide-area network (LPWAN) technology tailored to support these low-data, high-efficiency applications. In this article, we explore how NB-IoT architecture works and why it plays a crucial role in the future of IoT.

Definition

Narrowband Internet of Things (NB-IoT) is a low-power wide-area (LPWA) wireless communication technology designed specifically for connecting devices with low data rates, long battery life, and extended coverage needs. Operating within existing cellular networks, NB-IoT supports massive numbers of connected devices in areas such as smart metering, environmental monitoring, and industrial automation, while offering enhanced indoor penetration and cost efficiency.

What is Narrowband IoT (NB-IoT)?

Narrowband IoT is a cellular-based LPWAN technology standardized by the 3rd Generation Partnership Project (3GPP) in Release 13. It was designed specifically to provide connectivity for a large number of low-throughput devices over wide geographic areas, with minimal power consumption and cost.

NB-IoT operates on a narrow bandwidth of 180 kHz, which allows for excellent indoor penetration and long-range transmission. Unlike traditional cellular communication protocols, NB-IoT is optimized for devices that send small amounts of data infrequently — such as smart meters, environmental sensors, and tracking devices.

Key Features of NB-IoT

Before diving into the architecture, it’s important to understand the core features that make NB-IoT ideal for certain use cases:

  • Low Power Consumption: Devices can run on a single battery for up to 10 years.
  • Deep Coverage: Signals can penetrate walls and underground spaces better than traditional cellular networks.
  • High Device Density: Supports up to 50,000 devices per NB-IoT cell.
  • Low Cost: Simple hardware and minimal bandwidth usage reduce production and operational costs.
  • Licensed Spectrum: Operates on secure, licensed cellular frequencies to ensure minimal interference and high reliability.

NB-IoT Architecture Overview

NB-IoT architecture builds on existing LTE (Long-Term Evolution) infrastructure but can also function independently. It comprises several layers and components, each with a specific role in data transmission and device communication.

1. User Equipment (UE)

  • Smart meters
  • Temperature sensors
  • Asset trackers
  • Waste management sensors

NB-IoT-enabled user equipment is designed to be simple, power-efficient, and cost-effective. Devices communicate through uplink and downlink channels to transfer small amounts of data over extended intervals.

2. Radio Access Network (RAN)

  • Standalone Deployment: Uses dedicated spectrum, often re-farmed from GSM.
  • In-band Deployment: Shares LTE carriers within the existing LTE spectrum.
  • Guard-band Deployment: Makes use of LTE carriers’ guard bands.

The base station, also known as the eNodeB (Evolved Node B), makes it easier for devices to connect wirelessly to the core network. In many cases, existing LTE eNodeBs can be upgraded via software to support NB-IoT, reducing deployment costs and time.

3. Core Network (EPC)

The core network, also known as the Evolved Packet Core (EPC), manages control signaling, security, data routing, and mobility management. It includes components such as:

  • Mobility Management Entity (MME): Manages device registration, authentication, and mobility.
  • Serving Gateway (SGW): Routes and forwards user data packets.
  • Packet Data Network Gateway (PGW): Attached to external networks, such as the internet or business servers, is NB-IoT.
  • Home Subscriber Server (HSS): Keeps authentication information and user profiles safe.

NB-IoT uses Non-IP Data Delivery (NIDD) in many cases to reduce overhead, but it can also support IP-based communication when necessary.

4. Application Server

At the top layer of the architecture lies the Application Server, which processes data from IoT devices for use in applications such as:

  • Predictive maintenance
  • Fleet management
  • Energy usage analytics
  • Smart agriculture

Data transmitted via NB-IoT is often integrated into cloud platforms where it can be analyzed, visualized, and acted upon.

How NB-IoT Works

  1. Device Registration: The NB-IoT device connects to the network and registers through the MME and HSS.
  2. Data Transmission: When the device collects data (e.g., temperature or location), it transmits it to the nearest eNodeB.
  3. Routing Through Core Network: The SGW and PGW receive the data from the eNodeB and send it to the relevant application server.
  4. Data Processing: The application server interprets and acts on the data, sending any required responses back through the same path.

NB-IoT is designed to allow devices to remain in idle or power-saving mode most of the time, waking up only when needed to send or receive data, thus preserving battery life.

Why NB-IoT Matters

1. Enabling Massive IoT Deployments

NB-IoT is ideal for smart cities, agriculture, logistics, and utility sectors where thousands of sensors need to be deployed and monitored with minimal human intervention.

2. Extended Coverage in Challenging Environments

Its signal can penetrate deep indoors and underground, making it suitable for use cases such as water metering in basements or sensors in remote farming locations.

3. Scalability and Cost-Effectiveness

By leveraging existing LTE infrastructure, telecom operators can scale NB-IoT deployments without investing heavily in new hardware, allowing them to offer competitive pricing to end users.

4. Energy Efficiency

NB-IoT supports features like Power Saving Mode (PSM) and Extended Discontinuous Reception (eDRX), ensuring devices consume minimal energy — crucial for battery-powered sensors meant to last years.

5. Robust Security

Operating on licensed spectrum and integrating with 4G/LTE networks, NB-IoT inherits strong security protocols including SIM-based authentication and secure encryption.

Use Cases of NB-IoT

  • Smart Utilities: Remote monitoring of gas, electricity, and water meters.
  • Smart Cities: Parking sensors, street lighting, and waste management systems.
  • Agriculture: Soil moisture sensors, livestock tracking, and climate monitoring.
  • Logistics: Asset tracking, package condition monitoring, and fleet management.
  • Healthcare: Medical equipment that is connected to patient monitoring devices.

Challenges and Considerations

While NB-IoT is highly promising, it also presents certain challenges:

  • Limited Data Bandwidth: Not suitable for applications requiring high-speed or real-time communication.
  • Device Availability: Still growing in adoption, some markets may lack readily available NB-IoT modules
  • Roaming Issues: International roaming for NB-IoT is not universally supported across carriers.

Growth Rate of Narrowband Internet of Things (IoT) Market

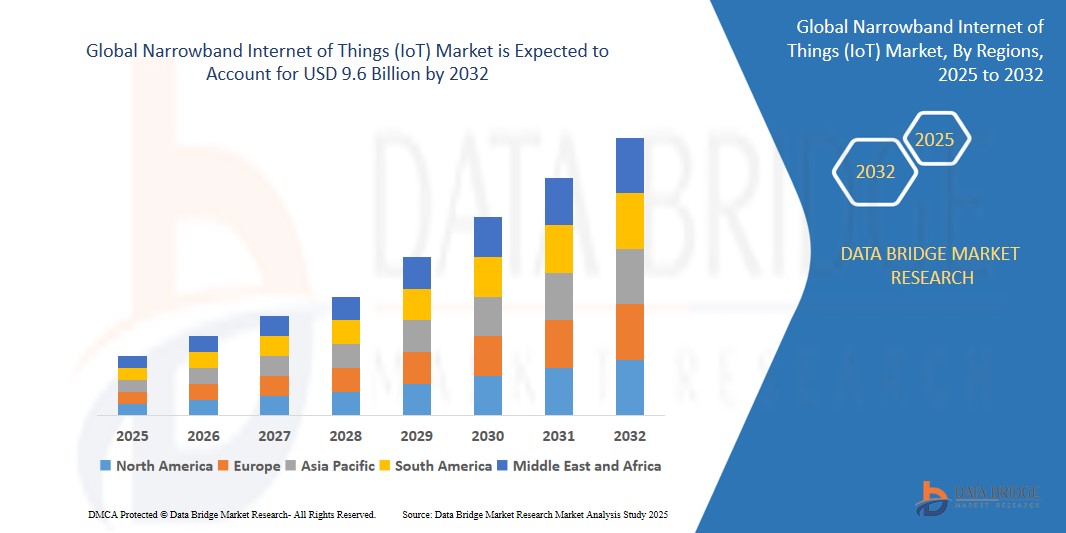

According to Data Bridge Market Research, the global Narrowband Internet of Things (IoT) market was estimated to be worth USD 5.2 billion in 2024 and is expected to expand at a compound annual growth rate (CAGR) of 8.2% to reach USD 9.6 billion by 2032.

Read More: https://www.databridgemarketresearch.com/reports/global-narrowband-iot-market

Conclusion

Narrowband IoT is a game-changer for the future of connected devices that need to operate efficiently, affordably, and reliably over long periods. Its architecture – leveraging existing LTE infrastructure and offering low power, wide coverage, and high scalability – makes it a perfect fit for the ever-expanding universe of smart applications. As industries continue to digitize and automate, NB-IoT provides a solid foundation for scalable IoT networks. Understanding how it works and why it matters can help organizations make informed decisions as they navigate their IoT strategies in the coming years.
